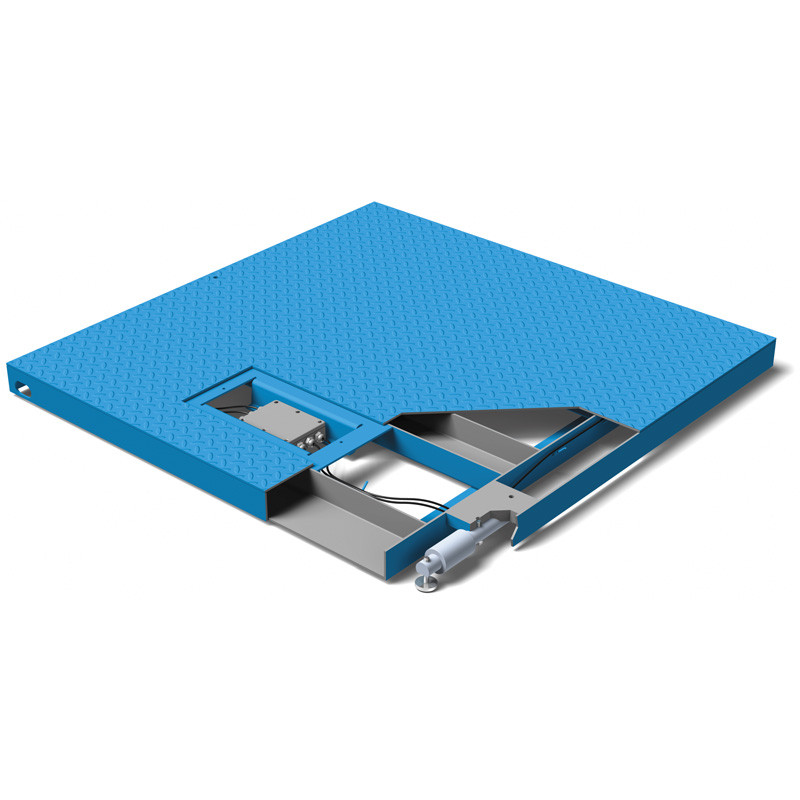

The ProDec floor scale was designed as a low profile, economical scale for use in many environments. The stainless steel version can take the high pressure wash downs and highly corrosive environments in many industrial settings. Capacities from 2,000 to 20,000 lbs and sizes from 30" x 30" to 96" x 72" available.
Low profile design
The low profile design helps relieve the back strain of repetitive weighing. The scale height is only 3.31 inches on models of 5,000 lb or less, 4.06 inches on 10,000 lb models and 5 inches on 20,000 lb models. This allows for easy-on and easy-off manipulation of carts.
Built to last
Steel support channels welded under the top plate add superior strength and keep decks from warping and bending.
Safety tread deck
The top plate on the deck and ramp surfaces is a safety tread pattern. This non-slip pattern reduces the risk of injuries.
ProDecs are placed in the most efficient traffic patterns to utilize more than one weighing situation. The four-way ramp positioning speeds up work flow from any direction.
Patented Weigh Bars
Weigh Bars are another key to the ProDec's popularity. The patented Weigh Bar is made from an aircraft alloy steel bar and is precision tooled in the machine shop at Weigh-Tronix. An in-house gauging process, sealing procedure and testing analysis of each Weigh Bar insures the reliability you get in every ProDec scale.
Protected internal components
The moisture proof junction box is recessed in the deck with a removable plate for easy access. High pressure washdown will not affect the junction box or Weigh Bar weight sensors.
All Weigh Bar cables are protected inside the deck structure. Cables cannot get damaged.
Design features on the ProDec offer easy access to Weigh Bars and the junction box for servicing. The removeable deck plate seals the recessed junction box and lifts off for quick, routine calibration procedures.
The ProDec is easy to move. Eye bolts inserted in the pre-fabricated lifting holes enable smooth relocation.
Adjustable leveling feet have a 3/4" adjustment and are made of a corrosion resistant stainless steel.
