Defining Value and Performance

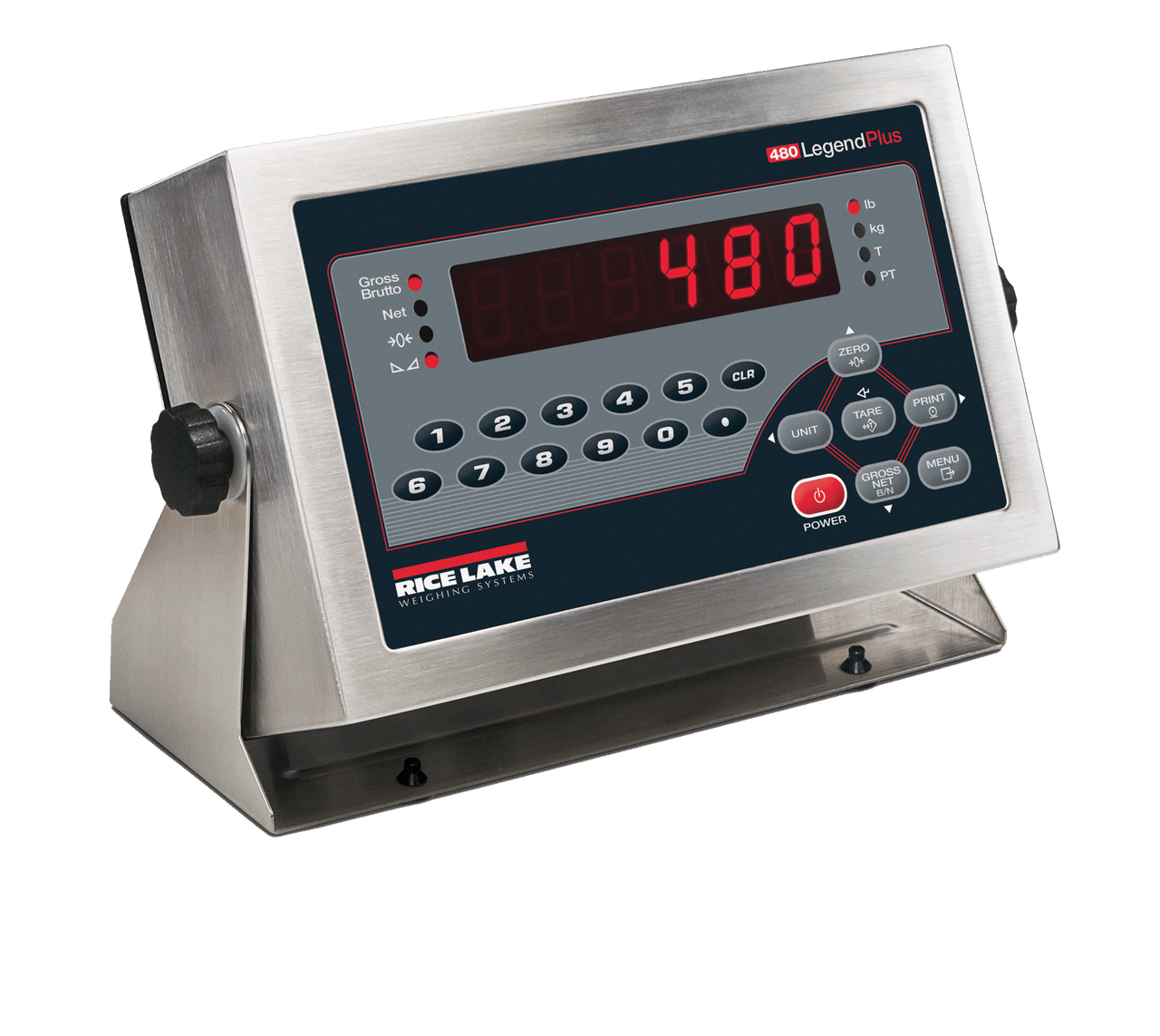

With NEMA Type 4X, stainless steel enclosure and advanced gasket system, the industrial-strength Legend Series is built for dirty, wet environments and demanding workplaces, inside or out. Choose between large, ultra-bright LED or LCD 0.8-inch displays with 6-digits and sharp contrast for superior display visibility.

Advanced circuitry withstands electrical noise, power disturbances and transient spikes that are common to industrial applications. The Legend Series’ six-button tactile keypad allows for quick navigation and programming. The Legend Plus Series offers a full numeric keypad.

The Legend Series offers a valuable solution for a variety of applications, from basic weighing to batching. Built-in gross/net modes provide quick flexibility for everyday needs. Also utilize the 480’s custom ticket printing to modify

• LED display, 0.8 in (20 mm), six-digit, seven-segment
• Time and date, battery backed
• Local/remote operation
• Numeric keypad (480/482 Plus)
• Keyed entries for setpoint values (480/482 Plus)
• Two independent serial ports, RS-232 and 20 mA
• NEMA Type 4X/IP66 stainless steel washdown enclosure
• Programmable ticket formats for gross, net, accumulator and setpoints
• Five continuous stream formats
• Adapter filter or rolling average filter
• Operator functions through menu for audit trail, preset tare, unit ID, accumulator, time and date, setpoints, communications and print formats
• Eight setpoints, sequenced batch engine
• Configurable with Revolution® software
